Architectural Facade Design with Polycarbonate Panels

Introduction: The 40% Weight Penalty Architects Are Tired of Paying

A typical glass curtain wall system imposes a dead load of 35-50 kg/m² on the primary structure (EN 13830:2015, Curtain walling — Product standard). That weight cascades into heavier steel framing, deeper foundations, and higher embodied carbon — all before the first tenant moves in. For mid-rise commercial buildings, the structural steel premium attributable to facade weight alone can reach 8-12% of total frame cost, per the Steel Construction Institute’s P391 design guide on structural-thermal interaction.

Architects and facade engineers are increasingly turning to polycarbonate solid and multiwall panel systems as a primary cladding material — not just for skylights and canopies, but for entire building envelopes. The numbers driving this shift are straightforward: polycarbonate facade panels weigh 1.5-4.8 kg/m² — roughly 90% less than equivalent glass units — while delivering U-values as low as 1.0 W/m²·K (EN 12667:2001) and light transmission configurable from 0% to 86%.

This article provides a structural and thermal comparison of polycarbonate versus traditional facade materials, examines the relevant EN and ISO performance standards, and identifies the building typologies where polycarbonate cladding delivers the strongest technical and economic case.

Why Polycarbonate Is Reshaping Facade Engineering

Weight Reduction Without Structural Compromise

The governing principle is dead load reduction. A 10mm solid polycarbonate panel weighs approximately 12 kg/m², while a 16mm 5-wall multiwall PC panel weighs only 2.7-3.0 kg/m². Compare this to 6mm toughened glass at 15 kg/m² or a double-glazed IGU at 25-30 kg/m². The weight advantage translates directly into cost savings: lighter mullions and transoms, smaller bracket connections per EN 1993-1-8 (Design of joints), and in seismic zones (Eurocode 8 / ASCE 7-22 Chapter 12), dramatically lower inertial forces on the primary lateral system.

Impact performance is the second differentiator. Solid polycarbonate carries a notched Izod impact strength of 600-850 J/m per ISO 180/A, versus 0.5-1.0 J/m for annealed glass. In hail-prone regions (e.g., Calgary AB, Munich DE) and for ground-floor facades subject to accidental impact, polycarbonate removes the need for laminated safety glass entirely. Under EN 12600:2002 (Pendulum impact test), polycarbonate panels consistently achieve Class 1B1 — the highest classification for soft-body impact resistance.

Fire Performance: The Code-Compliant Reality

UL 94 V-0 and EN 13501-1 Classifications

Polycarbonate’s fire behavior is widely misunderstood. While PC is a thermoplastic (not incombustible), solid polycarbonate sheets with flame-retardant additives achieve UL 94 V-0 — self-extinguishing within 10 seconds on a vertical specimen, with no flaming drips — per UL 94 Sixth Edition, Section 8. Under EN 13501-1:2018 (Fire classification of construction products), standard PC typically falls into Class B-s1,d0 or C-s1,d0 depending on thickness and formulation: limited contribution to flashover (B or C), low smoke production (s1), and no flaming droplets/particles (d0).

For facade applications governed by building codes, the critical nuance is that EN 13501-1 classifies the complete system, not the material in isolation. A polycarbonate panel tested as part of a curtain wall assembly — with aluminum framing, appropriate cavity barriers per EN 1364-3, and intumescent seals — can satisfy the same B-s1,d0 requirements as many aluminum composite systems. The Institution of Structural Engineers’ “Structural Use of Glass in Buildings” (2nd ed., 2021) and the Council on Tall Buildings and Urban Habitat (CTBUH) Technical Guide on Facade Engineering both acknowledge engineered polymer-based cladding as code-compliant when correctly specified and tested as a system.

Design Flexibility: Geometry Beyond Flat Glass

Cold Bending, Thermoforming, and Multi-Skin Depth

Polycarbonate’s cold bending capability — minimum radius approximately 150× sheet thickness for solid PC and 175× for multiwall, per EN 16240:2014 — allows facade designers to introduce curved, vaulted, and free-form geometries without the cost and lead time of hot-bent glass. A 10mm PC panel cold-bent to a 1.5m radius exerts roughly 80% less springback force than equivalent-thickness PMMA (acrylic), which simplifies frame design and reduces fastener count.

For full three-dimensional geometries, thermoforming (vacuum forming) permits compound-curved facade elements — dome skylights, barrel vaults, wave-form canopies — directly from a single PC sheet. The process operates at 180-210°C mold temperature with cycle times under 15 minutes for panels up to 3m × 2m. This capability is documented in Bayer MaterialScience’s “Processing Guide for Makrolon Polycarbonate Sheet” (2010) and remains standard across all PC sheet manufacturers.

The translucency-versus-privacy spectrum is another design lever: solid PC in opal, bronze, or grey tints delivers 20-65% light transmission with obscured visibility — ideal for ground-floor commercial facades that need daylight without street-level transparency. Multiwall PC with opalescent pigment balances diffusion and insulation for atria and stair cores.

Thermal Bridging and Condensation Control

Facade thermal performance is governed not just by the panel U-value but by linear thermal transmittance at framing connections (Ψ-value, per EN ISO 10211:2017). Polycarbonate panels, unlike aluminum composite panels, are non-metallic — they do not create the thermal bridge that aluminum face sheets introduce. A typical aluminum mullion with polyamide thermal break achieves Ψ ≈ 0.08-0.12 W/m·K whereas the same profile without thermal break (solid aluminum, acceptable only with non-conductive PC infill) jumps to Ψ ≈ 0.6-0.9 W/m·K.

Condensation risk is managed through multi-skin geometry itself: the internal ribs of multiwall PC create discontinuous thermal paths that keep the interior face temperature above dew point under most European heating-season conditions (indoor 20°C, 50% RH, outdoor -5°C). Calculation per EN ISO 13788:2012 (Hygrothermal performance) confirms that 16mm 5-wall PC with standard aluminum framing and EPDM gaskets avoids interstitial condensation at the panel edge — provided the frame drainage channel is continuous and weep holes are placed at ≤600mm centers, as recommended by the Centre for Window and Cladding Technology (CWCT) Standard for Systemised Building Envelopes (2020).

FAQ

Is polycarbonate allowed as primary facade cladding under European building codes?

Yes — when tested and classified as a complete curtain wall or rainscreen system per EN 13830:2015 (Curtain walling) and EN 13501-1:2018 (Reaction to fire). The key requirement is system-level testing, not material-level classification alone. Polycarbonate facade systems achieving B-s1,d0 are accepted under the regulatory frameworks of most EU member states. Always consult the local Approved Document B (UK), LBO (Germany), or equivalent national transposition.

How long does polycarbonate cladding last before yellowing or embrittlement?

Modern co-extruded UV-protected polycarbonate sheets, manufactured per EN 16240:2014 and EN 438-6 (exterior exposure), carry a 10-year limited warranty against yellowing (ΔYI < 5 per ASTM D1925) and impact strength loss exceeding 6%. Accelerated weathering per ISO 4892-2 (Xenon-arc, 3000+ hours) simulates 15-20 years of Southern European exposure. Real-world installations — Eden Project biomes, UK (2001-present) and Munich Olympic Stadium canopy retrofit (2006-present) — provide multi-decade validation.

Can polycarbonate panels be used in high-rise facades above 18m?

Yes, subject to the same fire engineering requirements as any facade material above 18m (UK Building Regulations Approved Document B, Requirement B4). The system must demonstrate compliance via BS 8414-2:2020 (full-scale facade fire test) or equivalent large-scale testing per the specific jurisdiction. Polycarbonate with B-s1,d0 classification, installed with non-combustible cavity barriers per EN 1364-3 and mineral wool insulation, passes this requirement when engineered as a complete tested assembly. CTBUH Technical Guide on Fire Safety in Tall Buildings (2021) references polymer-based cladding as acceptable within a performance-based design framework.

Conclusion: Facade Engineering Without the Weight Penalty

Polycarbonate facade panels occupy a specific and expanding niche: applications where low structural weight, high impact resistance, and configurable translucency deliver measurably better outcomes than glass, metal, or concrete alternatives. The performance data — U-values from 1.0 W/m²·K, EN 12600 Class 1B1 impact classification, UL 94 V-0 fire rating with appropriate formulation, and 90% weight reduction versus double glazing — is established and standards-backed.

The challenge is not material performance but specification literacy: engineers and architects accustomed to glass and aluminum curtain wall systems need to understand that polycarbonate facade design follows the same code-compliance pathway — system-level testing, not material-level assumptions. Manufacturers with IATF 16949-certified production and documented EN testing provide the technical data packages needed for building control approval. The 40% weight penalty is optional — and a growing number of facade engineers are choosing not to pay it.

References

1. EN 13830:2015 — Curtain walling. Product standard. CEN, Brussels.
2. EN 12667:2001 — Thermal performance of building materials. Determination of thermal resistance. CEN.
3. EN 16240:2014 — Light transmitting flat solid polycarbonate sheets for internal and external use in roofs, walls, and ceilings. CEN.
4. EN 13501-1:2018 — Fire classification of construction products and building elements. CEN.
5. EN 12600:2002 — Glass in building. Pendulum test. Impact test method for flat glass.
6. ISO 180:2023 — Plastics. Determination of Izod impact strength. ISO, Geneva.
7. UL 94, Sixth Edition (2013) — Standard for Tests for Flammability of Plastic Materials. UL Standards.
8. CWCT (2020). Standard for Systemised Building Envelopes. Centre for Window and Cladding Technology, University of Bath.
9. CTBUH (2021). Technical Guide on Fire Safety in Tall Buildings. Council on Tall Buildings and Urban Habitat, Chicago.
10. SCI Publication P391 (2012). Structural Thermal Breaks. Steel Construction Institute, Ascot.

About Bakway Advanced Material

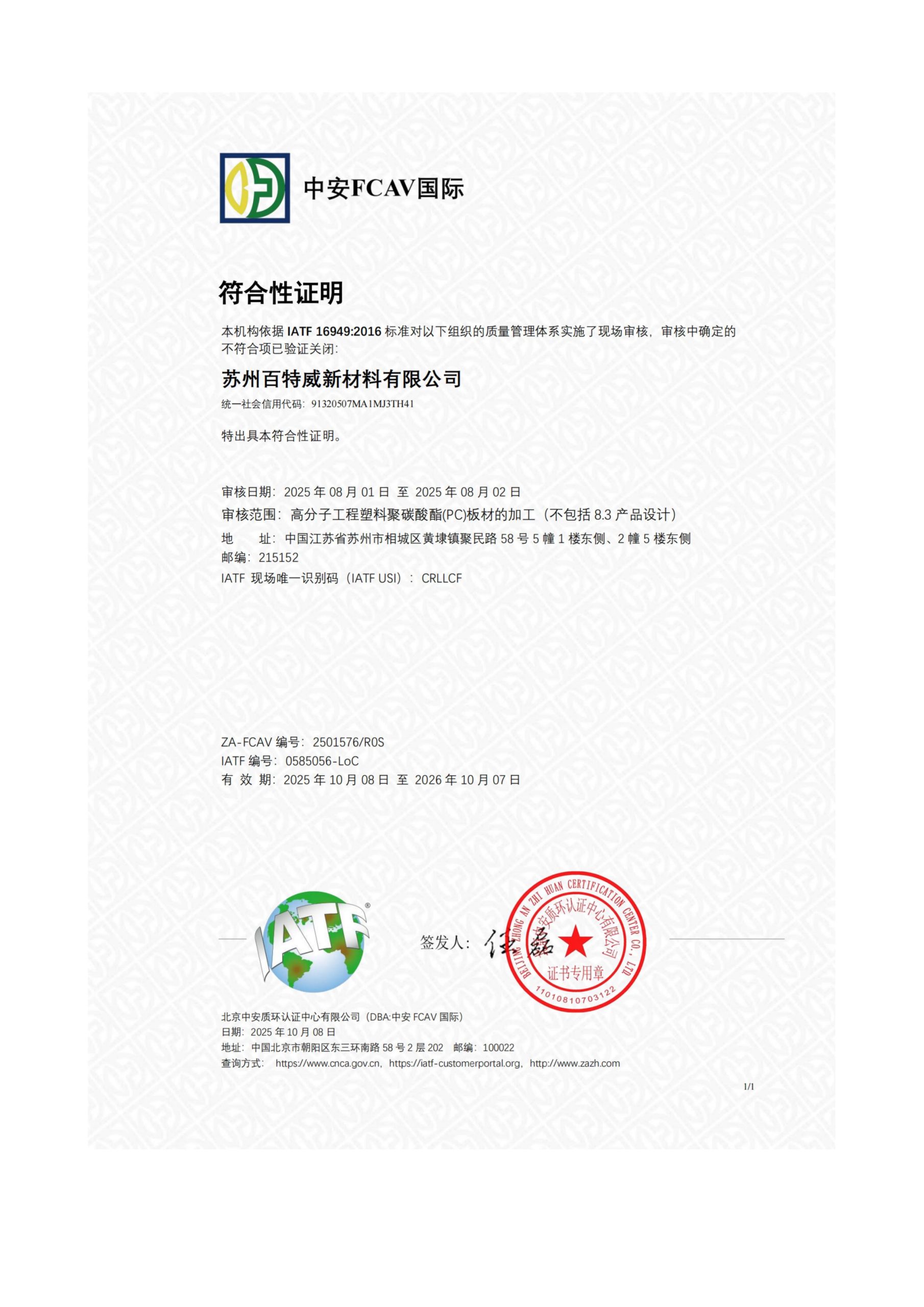

Suzhou Bakway New Materials Co., Ltd. (苏州百特威新材料有限公司) is an IATF 16949-certified polycarbonate sheet manufacturer based in Suzhou, Jiangsu, China. We produce solid, multiwall, corrugated, and specialty PC sheets for architectural facade, greenhouse, industrial glazing, and acoustic barrier applications. All sheets feature co-extruded UV protection per EN 16240 and are backed by documented EN/ISO test reports. With production that typically takes 7–15 working days after specification and deposit confirmation; custom work is confirmed in the quotation and dedicated export logistics support, Bakway serves contractors, fabricators, and OEMs across Europe, North America, and the Middle East. polycarbonate.cc
