Custom Thermoforming &
Vacuum Forming

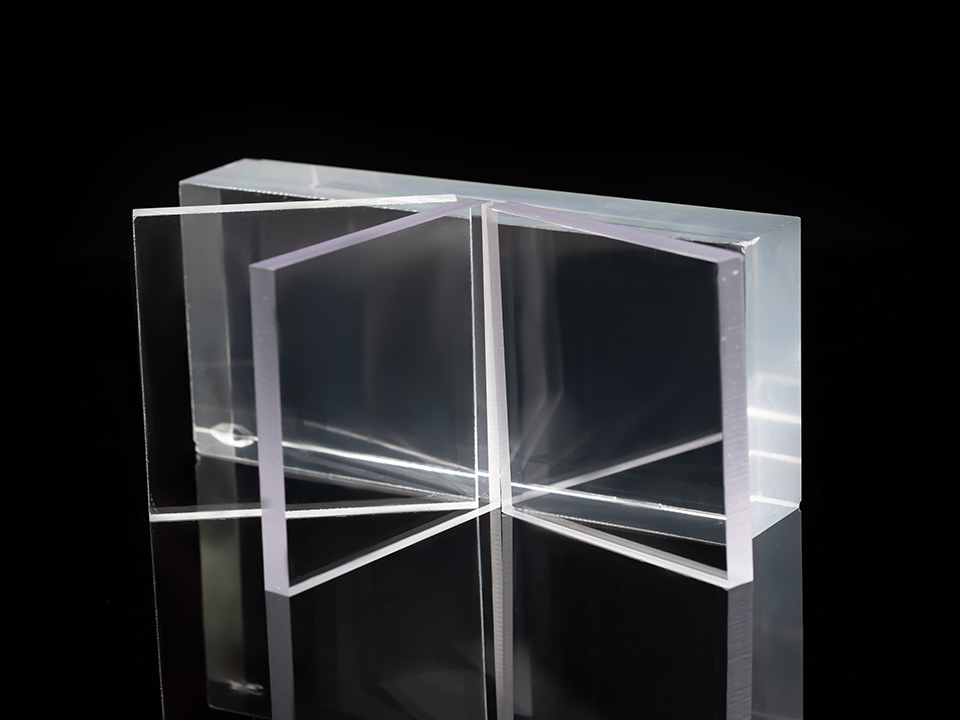

High-precision 3D shaping for crystal-clear polycarbonate components. We provide industry-leading bubble-free molding for domes, shields, and medical enclosures.
GET A TECHNICAL QUOTE
Advanced Forming Capabilities
- Pre-Drying Excellence: Moisture removal in high-precision ovens to ensure bubble-free optical clarity.
- Complex Geometries: Professional vacuum and pressure forming for deep-draw parts.
- Integrated Trimming: Post-molding 5-axis CNC trimming for perfect edge accuracy.
Full Production Workflow
Engineering review of 3D files to optimize design for the most cost-effective thermoforming.
In-house CNC machining of aluminum or epoxy molds to ensure high-precision finish.
Removing moisture from sheets (ABS, PC, etc.) and heating to the optimal forming temperature.
Applying high-pressure vacuum to stretch the plastic sheet perfectly over the mold detail.
Automated 5-axis CNC trimming for complex shapes with ±0.5mm dimensional tolerance.
Final quality check for optical clarity and wall thickness before secure industrial packaging.
Industrial Applications

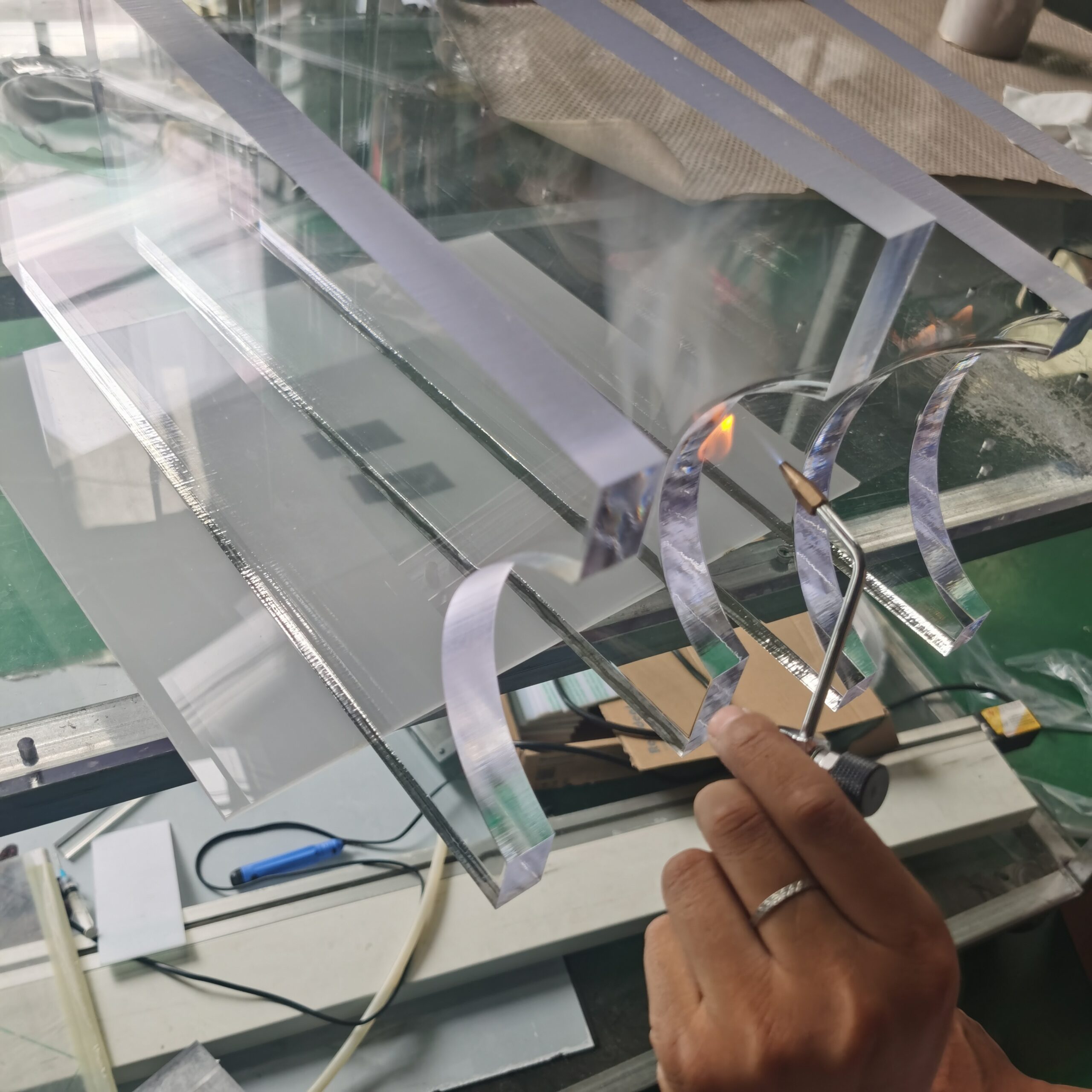

Custom-formed MRI, CT scanner covers and medical cart housings with anti-bacterial surfaces.
Heavy-duty interior panels, dashboards, and exterior fenders for special vehicles and EVs.

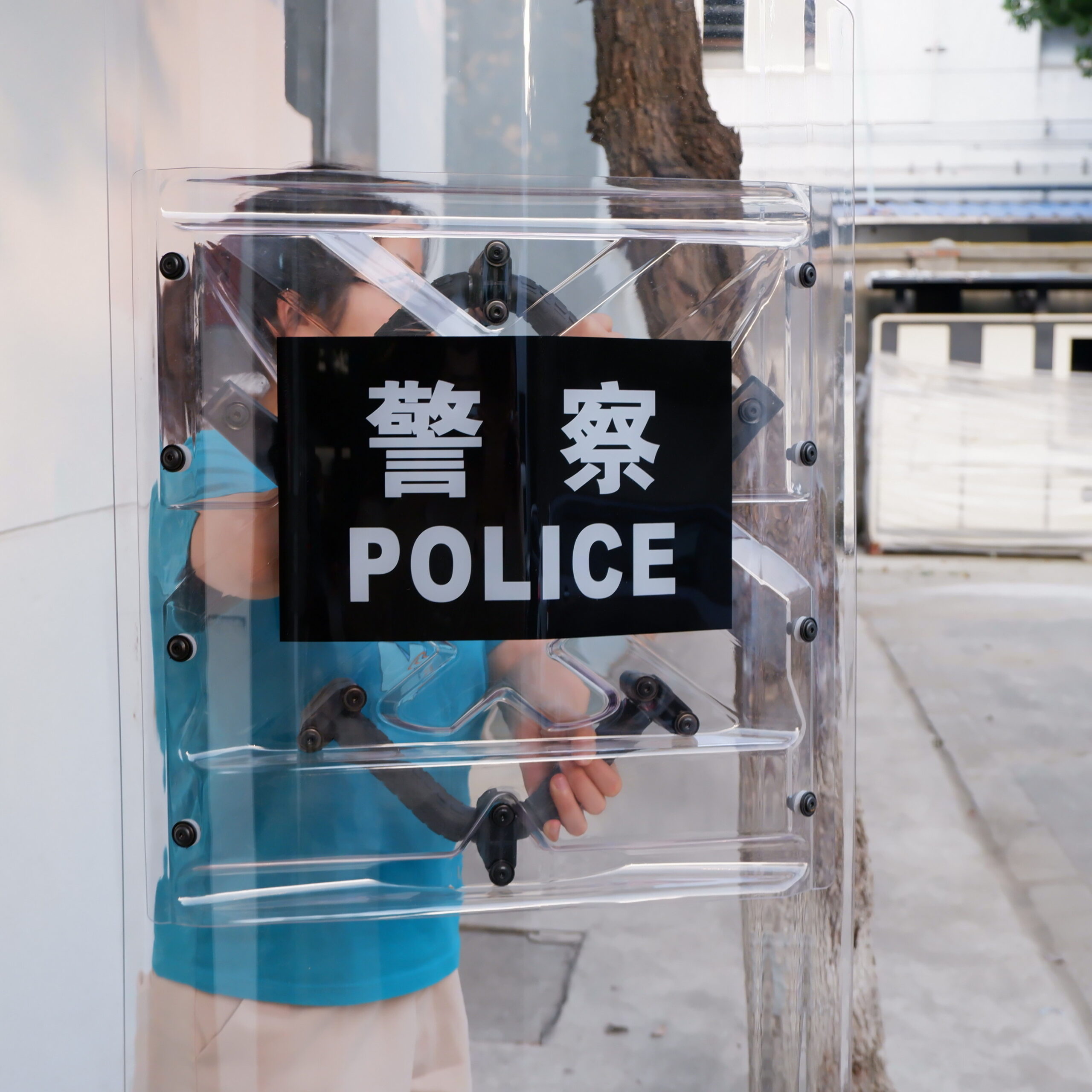

High-impact polycarbonate shields and machine safety guards for extreme protection.
Durable HDPE/ABS material handling trays and reusable shipping pallets for automation.

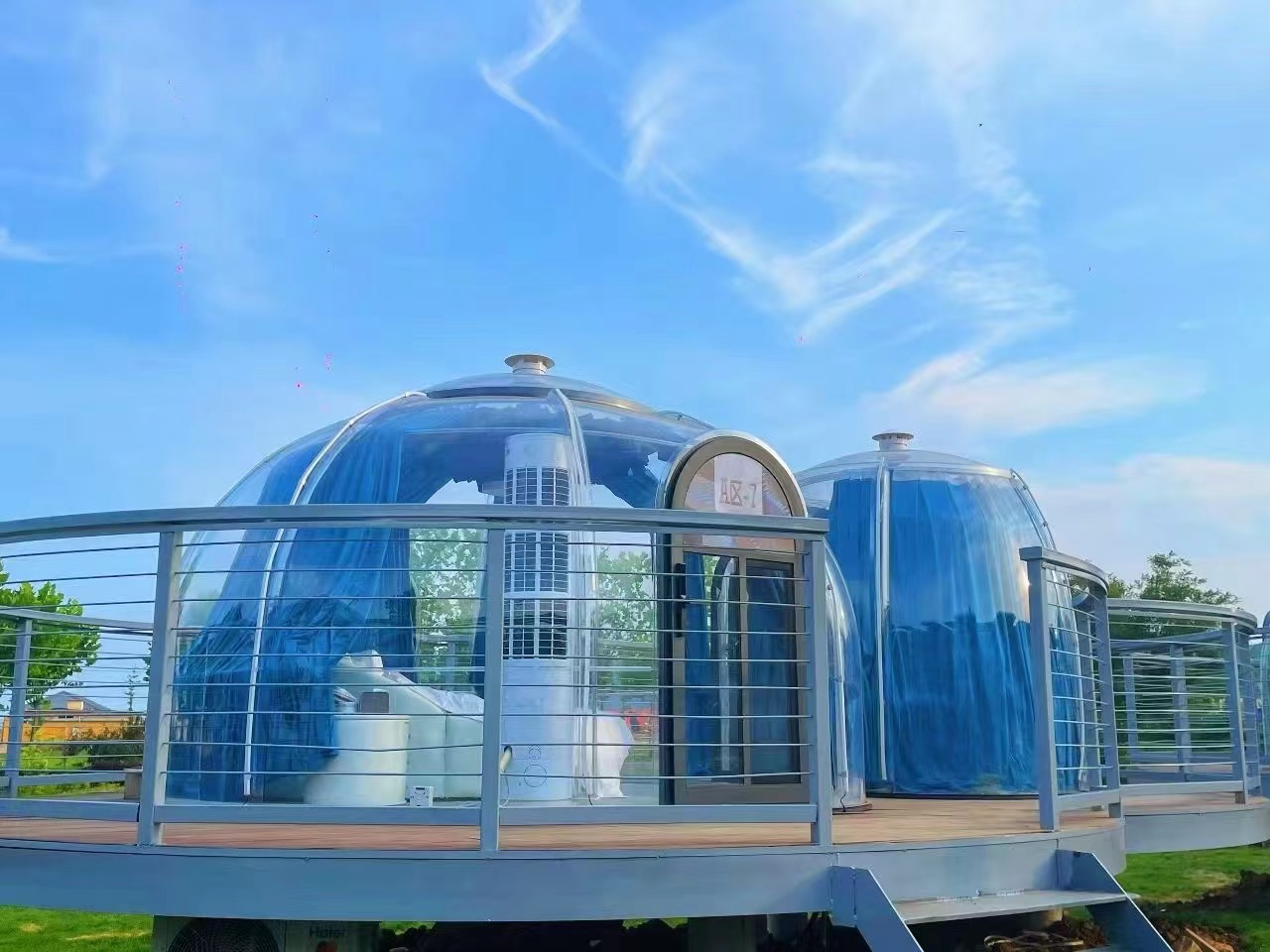

UV-resistant polycarbonate and acrylic domes for architectural and industrial lighting.
Precision-formed shells for kiosks, ATMs, and automated robot protective covers.
Production Process & Quality Control
DFM & Engineering
Reviewing your 3D designs (STEP/IGS) for optimal thermoforming feasibility and cost-efficiency.
Tooling Fabrication
In-house CNC machining of aluminum or resin molds, ensuring high precision and surface texture.
Material Heating
Precise temperature control for thermoplastic sheets (ABS, PC, HDPE) to ensure uniform thickness.
Vacuum Forming
High-pressure vacuum suction technology ensures the material perfectly conforms to the mold detail.
5-Axis CNC Trimming
Automated high-speed trimming and hole-cutting for complex geometries with ±0.5mm tolerance.
Final Assembly & QC
Secondary operations like bonding, silk-screening, and final dimensional inspection before shipping.
Our Quality Commitment
We implement a rigorous Quality Management System at every stage of production to meet the highest industrial standards.
Why Partner with Us?
Over 15 years of excellence in heavy-gauge vacuum forming, providing cost-effective and high-precision plastic solutions for global industries.
90% Lower Tooling Cost
Compared to injection molding, our thermoforming tools are significantly more affordable, making low-to-medium volume runs highly profitable.
Extra Large Capability
Specializing in heavy-gauge parts up to 3000mm x 1500mm. Perfect for medical housings, vehicle panels, and industrial trays.
Rapid Turnaround
Accelerate your time-to-market. Prototype tooling completed in 3-7 days, with mass production scaling in just 2 weeks.
5-Axis CNC Precision
Our automated 5-axis trimming centers guarantee complex geometries and tolerances as tight as ±0.5mm.
Diverse Material Options
Wide selection of UL-rated, FDA-compliant, and UV-resistant plastics including ABS, PC, HDPE, PETG, and HIPS.
One-Stop Engineering
From DFM (Design for Manufacturing) and mold flow analysis to final assembly and labeling, we handle it all.
Ready to Start Your Project?
Get a precise quote and expert DFM (Design for Manufacturing) feedback within 24 hours. Our engineers are ready to optimize your design for thermoforming.
